PC STRAND (Prestressed Concrete Strand)
PC Strand is a high-performance steel reinforcement product designed for prestressed concrete structures. Composed of multiple high-carbon steel wires helically wound together, PC Strand offers exceptional tensile strength, durability, and flexibility, making it ideal for applications requiring long-span support and load-bearing capacity.

Key Features:

High Tensile Strength: Manufactured to meet international standards (e.g., ASTM A416, BS 5896), with typical tensile strengths ranging from 1,860 MPa to 2,160 MPa.
Corrosion Resistance: Optional epoxy coating or galvanized finishes enhance longevity in harsh environments.
Uniform Stress Distribution: Precision engineering ensures consistent performance under dynamic and static loads.
Versatility: Available in diameters from 9.53 mm to 15.7 mm and customizable lengths to suit project requirements.

Applications:
Widely used in bridges, high-rise buildings, railway sleepers, nuclear power plants, and precast concrete elements. Its ability to reduce cracking and enhance structural integrity makes it a cornerstone of modern civil engineering.

Advantages:

Improves concrete's load-bearing efficiency while minimizing material usage.
Complies with stringent quality controls and international certifications.
Enhances project sustainability through extended service life and reduced maintenance costs.

Raw Materials: High-carbon steel wire rods, SWRH 82B，SWRH77B

Production Process : Material Inspection，Acid-washing ,Inspection Wiredrawing ,Inspection Left lay ,Circular cylinder ,Package ,inspection

P. C. Strand Meeting Standard ASTM A 416:
Grade	Normal Diameter (mm)	Tolerance (mm)	Area of section (mm2)	Theoretical Weight per 1000 meter	Minimum breaking strength (KN)	Minimum load At percent extension (KN)	Elongation (%)	Relaxation after 1000hrs at
								Initial Load 70%	Initial Load 80%
250	9.53	+/-0.40	51.61	405	89.0	80.1	3.5	2.5	3.5
	11.11		69.68	548	120.1	108.1
	12.70		92.90	730	160.1	144.1
	15.24		139.35	1094	240.2	216.2
270	9.53	+0.65 -0.15	54.84	432	102.3	92.1	3.5	2.5	3.5
	11.11		74.19	582	137.9	124.1
	12.70		98.71	775	183.7	165.3
	15.24		140	1102	260.7	234.6

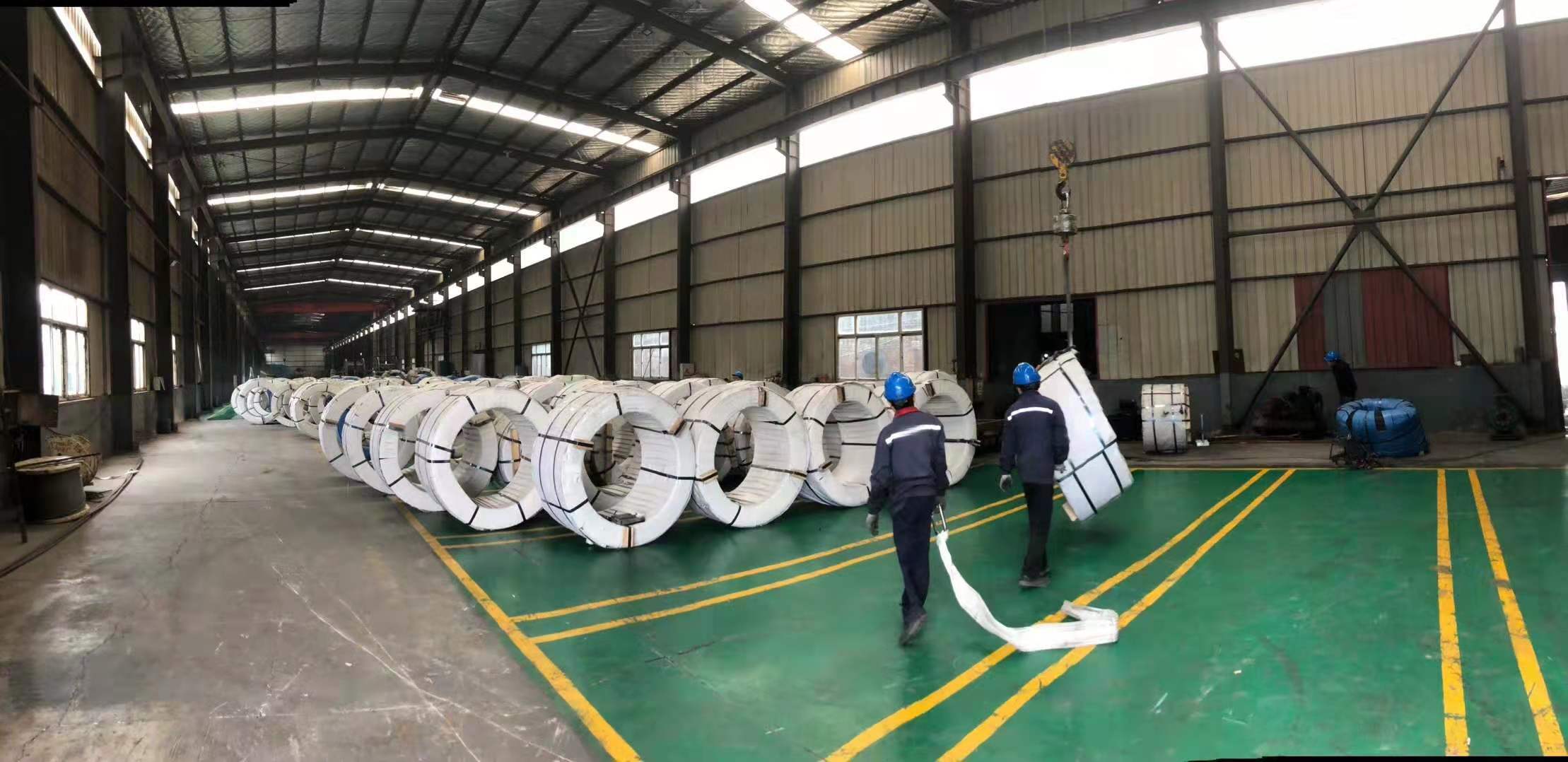

Warehouse and Delivery:
